Outstanding Design

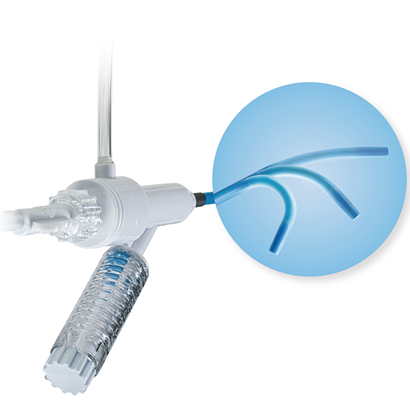

Unique tip deflection technology

Combination of long sheath and guiding catheter

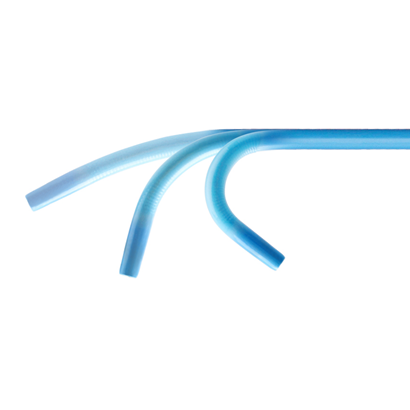

Outstanding tip deflection technology:0-160°

Precise Super Select Catheterization

Save surgery time by avoiding repetitive catheter sizing selection

Minimize vessel injury by avoiding repetitive catheterization procedures


Convenient for Usage

Quickly and easily access target using only one device

Short sheath + guiding catheter

Pre-shaped selective catheter + exchange operation + long sheath


Non-Invasive Position

Smooth transition between dilator and sheath

Avoid injury to vessel wall and vascular opening

Minimize risk of plaque obstruction during the advancement


Stable Support

Enhanced proximal segment

Ensure stable supporting for subsequent operations of device after access is established


Multiple Applications with only One Sheath

Specifications: 5F, 6F, 7F, 8F, 9F, 10F, 12F, 14F

Lengths Available: 550mm, 700mm, 800mm,900mm

Deflectable Lengths: 30mm, 50mm

Connector Type: Hemostasis valve

Suitable for a variety of interventional procedures, including structural heart disease, coronary artery disease, neurovascular, peripheral vascular disease and etc.


FustarTM-800

(Recommended for Being Used with ASD & PFO Occluder)

Cat.NoIDODEffective Length   (L1)Length of Deflect tip (L0)Deflectable Angle/°
(mm)(inch)(mm)(mm)(mm)
Type ASVA5F-8001.80.0712.9800250~160
SVA6F-8002.10.0833.280025
SVA7F-8002.50.0983.580025
SVA8F-8002.80.1103.980025
SVA9F-8003.10.1224.180025
SVA10F-8003.50.1384.580025
Type BSVB12F-8004.10.1615.2800500~90
SVB14F-8004.80.1895.980050

FustarTM-550/700/900

(Recommended for Being Used with Peripheral Case)

Cat.NoIDODEffective Length   (L1)Length of Deflect Tip (L0)Deflectable Angle/°
(mm)(inch)(mm)(mm)(mm)
SVA5F-5501.90.0752.8550250-160
SVA6F-5502.20.0873.1550250-160
SVA7F-5502.50.0983.4550250-160
SVA8F-5502.80.1103.6550250-160
SVA9F-5503.10.1224.0550250-160
SVA10F-5503.50.1384.4550250-160
SVA5F-7001.90.0752.8700250-160
SVA6F-7002.20.0873.1700250-160
SVA7F-7002.50.0983.4700250-160
SVA8F-7002.80.1103.6700250-160
SVA9F-7003.10.1224.0700250-160
SVA10F-7003.50.1384.4700250-160
SVA5F-9001.90.0752.8900250-160
SVA6F-9002.20.0873.1900250-160
SVA7F-9002.50.0983.4900250-160
SVA8F-9002.80.1103.6900250-160
SVA9F-9003.10.1224.0900250-160
SVA10F-9003.50.1384.4900250-160
